Product Details

  • $0.6400 / EA
  • ESTIMATED LEAD TIME TO SHIP IS 3-4 WEEKS
  • Available Only in Quantities of: 0
  • Log in to see if custom discounts apply
item image
item image
Click image to enlarge
item image
item image

15202
EC13SMPA8 HEYCO EDGE

  • Unit Price: $0.6400
  • UM : EA
Heyco 15202, Solar Edge Clips Assembled with 8-inch Cable Ties. For Panels from .04? (1.0 mm) to .12? (3.0 mm) Thick. Manufacturer description: EC13SMPA8. Cable tie fixing on side. Parallel cable tie orientation means the cable tie is parallel to the fixing edge. Steel clip provides high panel retention forces, while requiring low insertion force. Plastic housing ensures easy, ergonomic installation. Ideal solution for applications where holes are not available or temperatures are too extreme for adhesive solutions. 50 pounds tensile strength. Max bundle diameter 1.77?. Material Clip: Nylon 6/6 UV resistant and Heat Stabilized Insert: Post nickel plated steel. Flammability Rating 94V-2. Temperature Range -40F (-40C) TO 185F (85C).
Product Specifications
Description EC13SMPA8
Assembled w/ 8-in. Cable Tie? Yes
Panel Thickness Range .04? (1,0 mm) to .12? (3,0 mm)
Cable Tie Fixing Location Side
Cable Tie Orientation Parallel
Tensile Strength 50 lbs. (222 N)
Bundle Diameter 1.77 in. (45,0 mm)

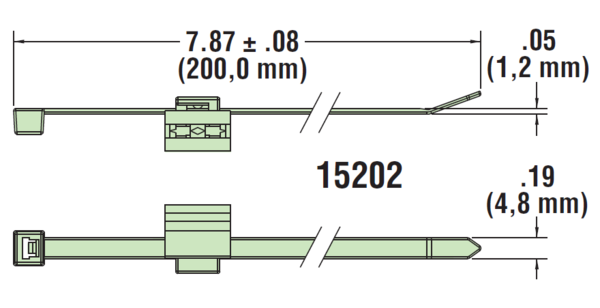

Overall Length 7.87 in. (200 mm)
Material Clip:Nylon 6/6 UV resistant and Heat Stabilized, Insert: Post nickel plated steel
Flammability Rating 94V-2
Temperature Range 40 degrees F (-40 degrees C) to 185 degrees F (85 degrees C)
