1848 | HEYCO ST 301N
1848
HEYCO ST 301N
Click image to enlarge
1848
HEYCO ST 301N
- $15.2800 / C
- UM : C
- Weight: 0.0077

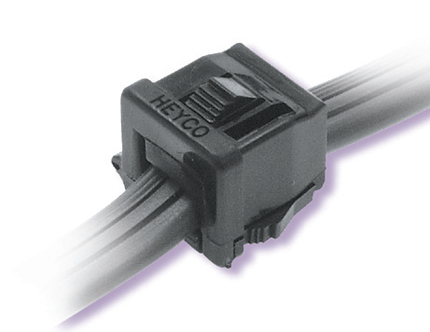

Assembly friendly! Independent of insertion into the panel, Lockit? Strain Reliefs self-lock onto the cable. Preassemble off line for final assembly at a later time or remote location, for lower installed cost! Lockit Strain Reliefs hold so well they pass the UL pull-out test requirements with or without panel support.
| Product Specifications | |
|---|---|
| Description | ST 301N |
| UL Type | See UL Recognized Wire Type Table |
| AWG/Conductors | various |
| Will Fit These Cables (in) | .355 - .420 |
| Will Fit These Cables (mm) | 9.0 - 10.6 |

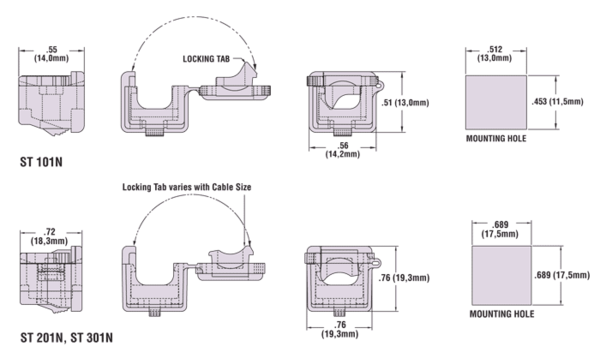

| Mounting Hole Size (in.) | .689 x .689 |
| Mounting Hole Size (mm.) | 17.5 x 17.5 |
| Panel Thickness (in.) | See Technical Data Sheet |
| Panel Thickness (mm.) | See Technical Data Sheet |
| Alternate Part Number (White) | 1849 |
| Corresponding Hole Plug | 1892 |
| Hole Plug Description | RP 175-175 |
×
