1854 | HEYCO ISR 14-27

  • $4.7500 / C
  • Out of Stock*
  • Available Only in Quantities of: 5
  • Log in to see if custom discounts apply
HEYCO ISR 14-27
HEYCO ISR 14-27
Click image to enlarge
HEYCO ISR 14-27
HEYCO ISR 14-27

1854
HEYCO ISR 14-27

  • $4.7500 / C
  • UM : C
  • Weight: 0.0017
Quick and easy to secure on any SPT-2 wire. Cost effective. No cutting or tools needed as with metal clamp type strain reliefs. There is no risk of repetitive motion strain or injury. UL Recognized (far exceeds UL's 35# pull-out test). UL Approved for use with SPT-2 Wire. Replaces UL Knot method of providing strain relief.
Product Specifications
Description ISR 14-27
Color Black
AWG/Conductors 18/2
UL Type SPT-2
Will Fit These Cables (in) .150 x .280
Will Fit These Cables (mm) 3.8 x 7.1

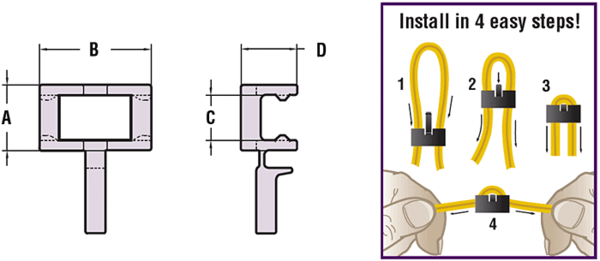

A- Part Dimension (in) 0.41
A- Part Dimension (mm) 10.4
B- Part Dimension (in) 0.7
B- Part Dimension (mm) 17.8
C- Part Dimension (in) 0.29
C- Part Dimension (mm) 7.4
D- Part Dimension (in) 0.35
D- Part Dimension (mm) 8.9
  • Heyco In-Line Strain Relief Bushing - Technical Data
  • View / Download
