1874 | HEYCO RDD 100

  • $10.9700 / C
  • Out of Stock*
  • Available Only in Quantities of: 5
  • Log in to see if custom discounts apply
HEYCO RDD 100
HEYCO RDD 100
Click image to enlarge
HEYCO RDD 100
HEYCO RDD 100

1874
HEYCO RDD 100

  • $10.9700 / C
  • UM : C
  • Weight: 0.0044

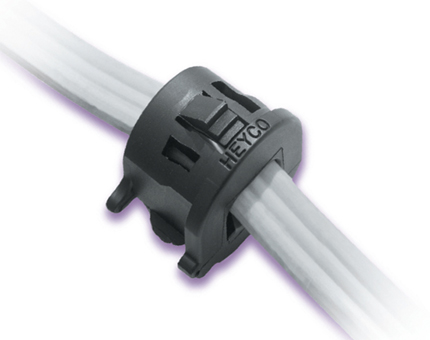

Assembly friendly! Independent of insertion into the panel, RDD Lockit? Strain Reliefs self-lock onto the cable. Preassemble RDD Lockits off line for final assembly at a later time or remote location, for lower installed cost! Install easily with fingertip pressure into a standard round or Double D hole. No tools required, even for hand assembly.
Product Specifications
Description RDD 100
UL Type SPT-2, HPN
AWG/Conductors 18/2, 18/3 16/3
Will Fit These Cables (in) .116 x .315, .160 x .300
Will Fit These Cables (mm) 2,9 x 8,0, 4,1 x 7,6

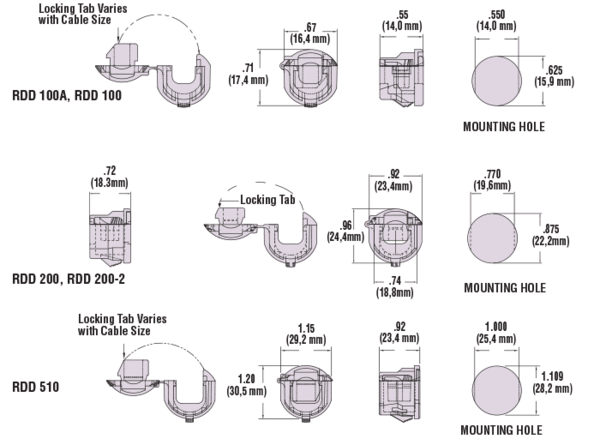

Mounting Hole Size (in.) .625 w/ .550 flats
Mounting Hole Size (mm.) 15,9 w/ 14,0 flats
Panel Thickness (in.) See Technical Data Sheet
Panel Thickness (mm.) See Technical Data Sheet
Alternate Part Number (White) 1875
Corresponding Hole Plug 2497
Hole Plug Description DD 625-550
  • Heyco RDD Lockit Strain Relief Bushings Straight-Thru (Flat Cables) - Technical Data
  • View / Download
