4440 | HEYCO DC 68-2-M/M

  • $180.8400 / C
  • Out of Stock*
  • Available Only in Quantities of: 5
  • Log in to see if custom discounts apply
HEYCO DC 68-2-M/M
HEYCO DC 68-2-M/M
Click image to enlarge
HEYCO DC 68-2-M/M
HEYCO DC 68-2-M/M

4440
HEYCO DC 68-2-M/M

  • $180.8400 / C
  • UM : C
  • Weight: 0.0100

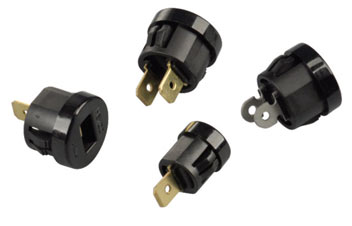

Small, snap-in nylon receptacles for low cost, insulated, quick connection or disconnection of your wires, through panels, housings or detachable shrouds. Typical uses are data processing and vending machines, motors, power supplies, and controls. Non-polarized HEYConnects feature 1/4" (6,4 mm) internal brass male terminals, to mate with standard 1/4" (6,4mm) female Quick-Connects. Polarized HEYConnects feature 1/4" (6,4 mm) and 3/16" (4,7 mm) internal brass male terminals, to mate with standard 1/4" and 3/16" female Quick-Connects. Two-terminal HEYConnect bodies feature markings that correlate the terminals, front to back.
Product Specifications
Description DC 68-2-M/M
Terminals - No. of Poles 2 Non-polarized
Terminals - Width (in) 0.25
Terminals - Width (mm) 6.4

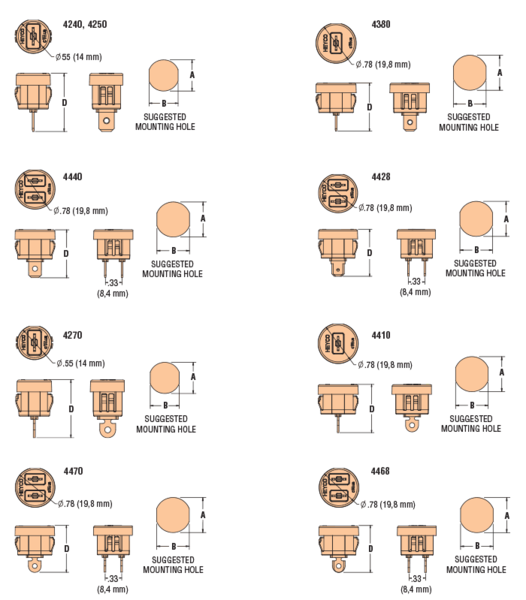

A- Mounting Hole Diameter (in) 0.687
A- Mounting Hole Diameter (mm) 17.4
B- To prevent rotation (in) 0.64
B- To prevent rotation (mm) 16.3
C- Max Panel Thickness (in) 0.125
C- Max Panel Thickness (mm) 3.2
D- Overall Length (in.) 0.94
D- Overall Length (mm) 23.9
  • HEYConnect Terminal Bushings - Technical Data
  • View / Download
