1952 | HEYCO HF3C 1/2-S

  • $28.7600 / C
  • Out of Stock*
  • Available Only in Quantities of: 5
  • Log in to see if custom discounts apply

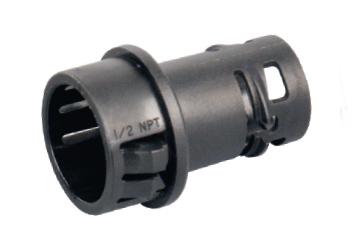

HEYCO HF3C 1/2-S
Click image to enlarge
HEYCO HF3C 1/2-S

1952
HEYCO HF3C 1/2-S

  • $28.7600 / C
  • UM : C
  • Weight: 0.0167
For use with Heyco-Flex III Corrugated Tubing in trade sizes 3/8? through 1?. Nontoxic and UV resistant. Rated for NEMA 4 and 4X applications when used with Heyco-Flex III Tubing. Rated for NEMA Type 3R applications. Easy, permanent assembly between the tubing and fittings: push the tubing over the fitting ferrule until the tubing "clicks" into place. Lightweight and lower installed cost. Quick and easy installation. Suitable for use in high vibration or flexing applications (automotive equipment, fiber optics, computer & peripherals, lab equipment, robotics, etc.). Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
Product Specifications
Description HF3C 1/2-S
Fits Conduit/Tubing Trade Size 1/2
Thread Size N/A
A- Clearance Hole (in.) 0.875
A- Clearance Hole (mm.) 22.3
B-Max O.A. Length (in.) 1.38
B-Max O.A. Length (mm.) 35.1
C- Thread Length (in.) 0.39
C- Thread Length (mm.) 9.9
D- Wrenching Nut Thk. (in.) 0.09
D- Wrenching Nut Thk. (mm). 2.3
E- Flat Size (in.) 0.97
E- Flat Size (mm.) 24.6
  • Heyco-Flex III Liquid Tight Fittings Snap-In Hub - Technical Data
  • View / Download
