BAP3-0025-ER0201 | BAP3 GROMMETTING - 25 FT.

  • $206.9760 / EA
  • In Stock
  • Available Only in Quantities of: 1
  • Log in to see if custom discounts apply
BAP3 GROMMETTING - 25 FT.
BAP3 GROMMETTING - 25 FT.
Click image to enlarge
BAP3 GROMMETTING - 25 FT.
BAP3 GROMMETTING - 25 FT.

BAP3-0025-ER0201
BAP3 GROMMETTING - 25 FT.

  • $206.9760 / EA
  • UM : EA

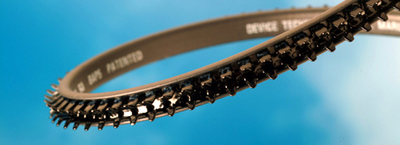

Spring-Fast Flexi Wire Protection Grommet BAP Series has all the attributes of the "T" and "BT" Series, but has greater gripping strength for severe shock and vibration environments with 4-axis flexibility. Heat continuous to 185F (85 C). Low Temperature to -40F (40? C). High Corrosion Resistance. UL94 V-0 Flammability Rating. Superior Dielectric Strength. High Shock and Vibration Resistance to rms G 41.7. Continuous Edge Protection on Flanged Holes, 1/8" or greater Inside Radius and 1/4" or greater Outside Radius.
Product Specifications
Substrate Material 304 Stainless Steel
Product Size 3
Sheet Thickness (Inch) .055 - .069
Sheet Thickness (mm) 1.4 - 1.7
Width (Inch) 0.19
Width (mm) 4.8
Castle Geometry Parallel
Flexibility Multi Axis
High Heat Fair
Series BAP Series
